| Specification | Details |
| Uplink Ports | 2, 1000Mbps & 1 Gigabit SFP Uplink port; Transmission Distance: Default: 0-100m |
| Switch Capacity | 10.8 Gbps (non-blocking) |
| PoE Power Budget | 300W |
| Surge Protection | Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 4KV Differential mode/Power board: 2KV |
| ESD | Air discharge: 8KV Contact discharge: 6KV |
| Ethernet Port Light | Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting |
| Network Port | 27 |
| Transmission Distance | 0-10m/1000Mbps or Port 9-24 Max. 250m/10Mbps via Cat.5e or more under Extend |
| PoE Ports | Port 1-24 support PoE, Max. 30W Output of Single PoE Port |
| PoE Power Supply | 1/2(+), 3/6(-) |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| Packet Forwarding Rate | 8035 Mpps |
| MAC Address List | 2K |
| Power Source | Built-in Power Supply Input: 100-240V AC, 50/60Hz |
| Power Consumption | <5W |
| Operating Temperature | -20°C ~ 45°C |
| Humidity | 10%-95%, non-condensing |
| Storage Temperature | -45°C ~ 85°C |
| Dimension | 320mm x 207mm x 45mm |
| Weight | 1 g |
|---|---|
| Dimensions | 5.25 × 5.25 × 8 cm |

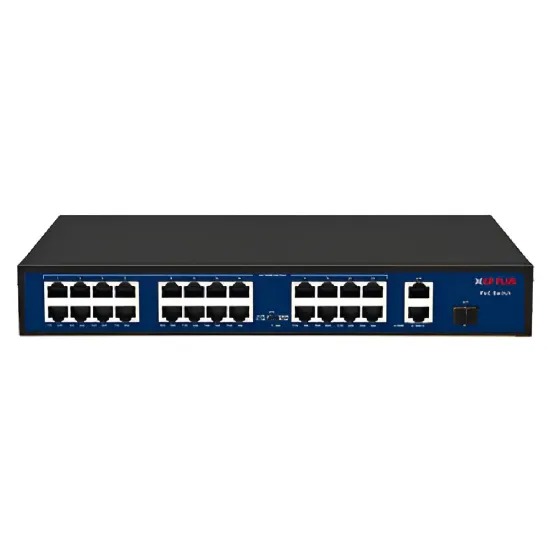

CP Plus CP-DNW-HPU24G2F1-30 24 Port Poe Switch (24 Normal Port + 2 Giga Uplink + 1 SFP) (300w)
Original price was: ₹ 12,990.00.₹ 10,000.00Current price is: ₹ 10,000.00.
Availability: In stock (can be backordered)
- Product ID: P8109
- Product CD: RGTEE
- Model:CP-DNW-HPU24G2F1-30
- Warranty:2 Years from Point of Purchase
- Port 1-24 support PoE, Max. 30W Output of Single PoE Port
- Support IEEE802.3/802.3u/802.3z/802.3ab/802.3x
- 2, 1000Mbps & 1 Gigabit SFP Uplink port; Transmission Distance: Default: 0-100m
- Easy and safe installation
| Specification | Details |
| Uplink Ports | 2, 1000Mbps & 1 Gigabit SFP Uplink port; Transmission Distance: Default: 0-100m |
| Switch Capacity | 10.8 Gbps (non-blocking) |
| PoE Power Budget | 300W |
| Surge Protection | Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 4KV Differential mode/Power board: 2KV |
| ESD | Air discharge: 8KV Contact discharge: 6KV |
| Ethernet Port Light | Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting |
| Network Port | 27 |
| Transmission Distance | 0-10m/1000Mbps or Port 9-24 Max. 250m/10Mbps via Cat.5e or more under Extend |
| PoE Ports | Port 1-24 support PoE, Max. 30W Output of Single PoE Port |
| PoE Power Supply | 1/2(+), 3/6(-) |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| Packet Forwarding Rate | 8035 Mpps |
| MAC Address List | 2K |
| Power Source | Built-in Power Supply Input: 100-240V AC, 50/60Hz |
| Power Consumption | <5W |
| Operating Temperature | -20°C ~ 45°C |
| Humidity | 10%-95%, non-condensing |
| Storage Temperature | -45°C ~ 85°C |
| Dimension | 320mm x 207mm x 45mm |
| Weight | 1 g |
|---|---|
| Dimensions | 5.25 × 5.25 × 8 cm |
